ANX7517
ANX7517
Overview:
ANX7517 is a USB Type-C to HDMI2.0b converter, which includes 3D display delivery capability. It can support up to 8.1Gbps lane speed in conjunction with any 4K@60 DP alternate mode USB-C source. ANX7517 transforms the DisplayPort output of a USB Type-C source device to HDMI or DVI output so that the device can connect to any high-definition TV, monitor, or projector.

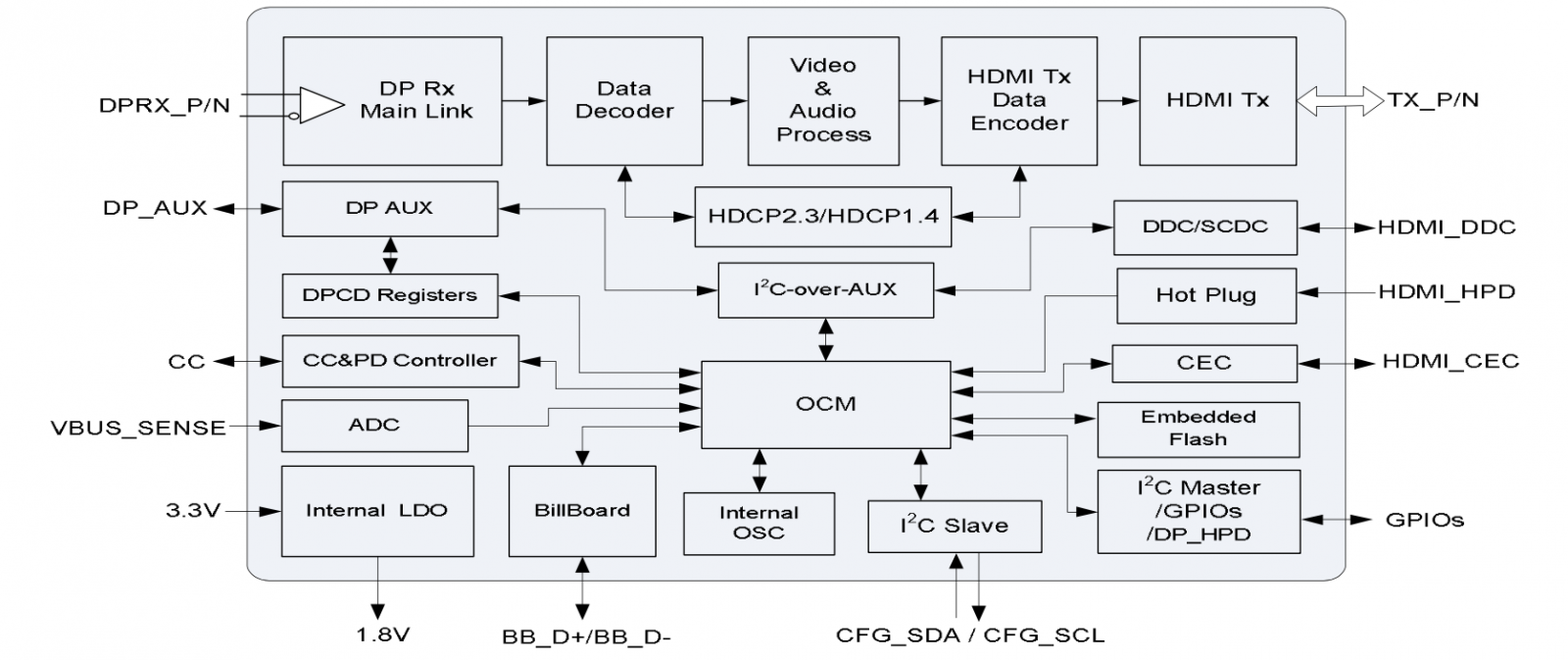

Main Features:
Other Features
- USB Type-C Specification 1.2 and backward compatible with Type-C specification 1.1
- USB Power Delivery (PD) v3.0 Compliant
- Integrated Channel Configuration (CC) and Power Delivery Logic (PD)
- Support USB2.0 Billboard function
- VESA DisplayPortTM (DP) v1.4 compliant receiver
- 1, 2 and 4 lanes up to HBR3 (8.1Gbps) input
- 1 MHz AUX Channel
- Horizontal Blanking Expansion Operation
- 27dB insertion loss recovery
- HDMI Specification v2.0b compliant transmitter
- TMDS scrambling up to 600MHz pixel clock rate
- Support up to 4096x2160@60Hz
- SCDC (Status and Control Data Channel)
- CEC2.0
- Support CEC Tunneling-over-Aux
- Support HDCP2.3, HDCP2.2 and HDCP1.4 repeater with HDCP keys inside
- Video stream
- Support High Dynamic Range (HDR) metadata
- Support 3D timing
- Audio Stream
- Max audio sample rate of 192KHz x8 channels
- 8-ch LPCM, compressed audio (AC-3, DTS)
- Integrated reference clock
- On chip micro-controller (OCM) and integrated memory
- Serial and debug interfaces
- Support I2C Slave and master interface, up to 1MHz
- Re-purpose GPIOs for UART or I2C master interface
- Support 3.3V and 0.9V power supply
- Flexible Firmware update methods
- Commercial temperature range of 0C to 70C
- HBM 4KV
Applications:
配件
Package:
- QFN-56, 7mmx7mm, 0.4mm pin-pitch
Detailed Product Information:
